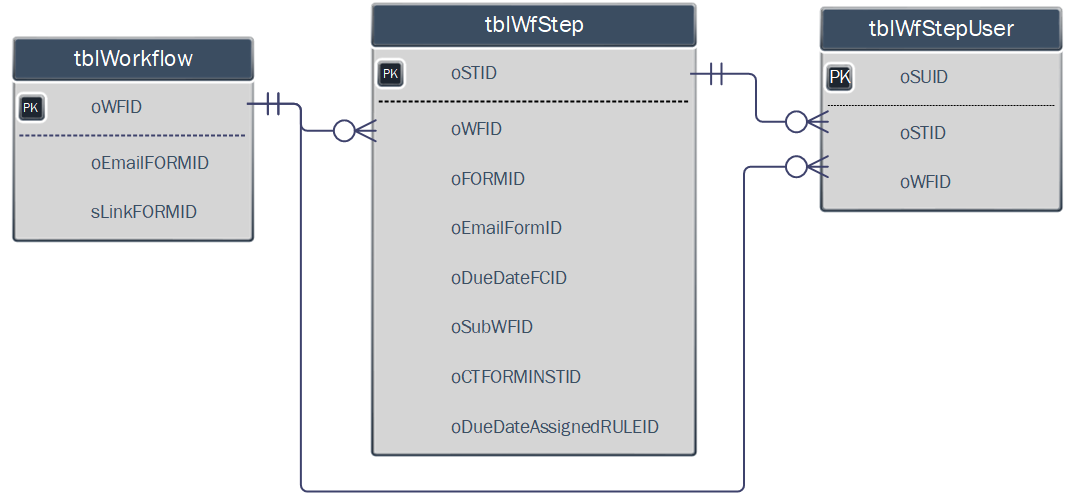

These graphics show the tables and their relationships. Tables in Process Director are linked via columns storing the IDs of tables they are linked to. For example, tblWfStep contains a reference to a tblWorkflow by storing the ID in the oWFID field.

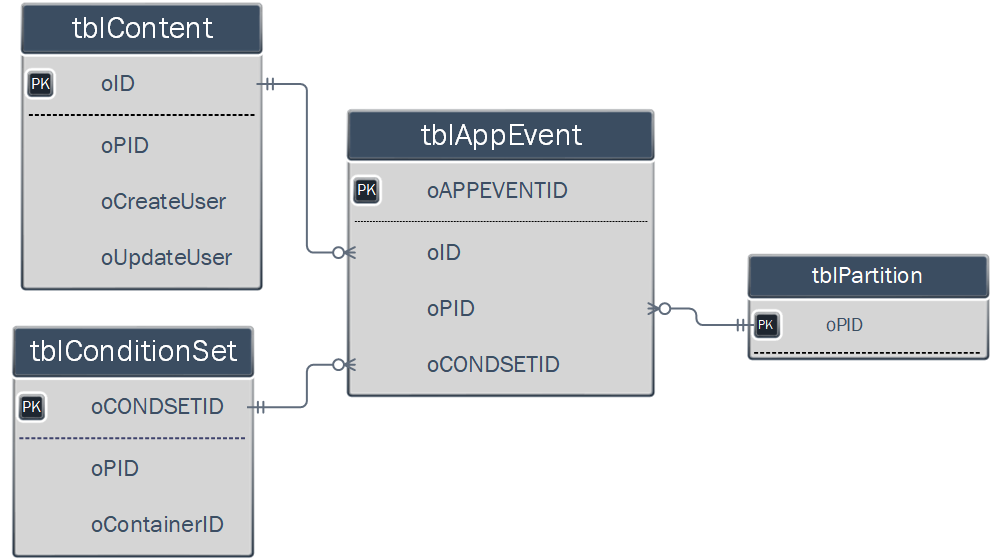

On the diagrams depicted in this section, each table displays only the primary and foreign key fields contained in the table. The data fields are excluded from the diagrams for simplicity. The legend below explains the notations used in the diagrams.
Key Relationships
Detailed Relationships
Content Mapping
All tables use a Unique GUID as the Primary Key ID. This enables us to create one-to-one relationships between each Content List object and the Content Map object, without needing to create a multi-index key for the tblContent primary key.
