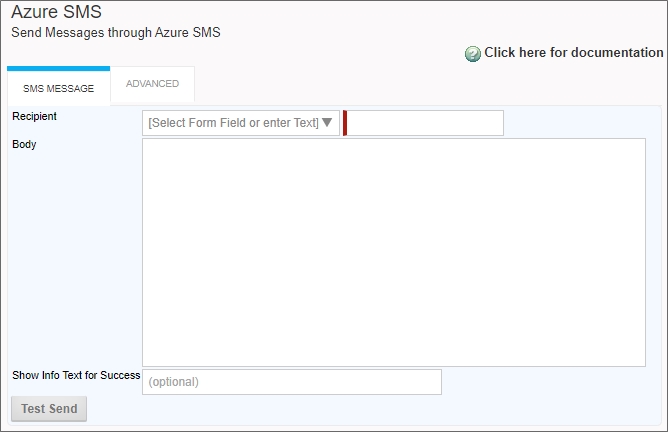

This Custom Task will use the Microsoft Azure's built-in SMS capabilities to send an SMS text message to a specified recipient's mobile phone number(s). For sending SMS, Azure supports up to 100 recipients (destination phone numbers).

SMS Message Tab

Advanced Tab

Configuration Options

OPTION	ATTRIBUTES	DESCRIPTION
SMS MESSAGE TAB
Recipient	Dropdown list of Form Fields OR Text Input	The mobile number to which to send the SMS Message. This number can be selected from a Form field, using the dropdown control, or by entering text in the provided text box. If a Form field is selected from the dropdown control, the text box will be hidden. Otherwise, the text field will accept a phone number or a system variable that returns the phone number. Any phone number string must conform to the E.164 format (full country code, starting with “+1” for U.S. numbers) for Azure SMS to accept it.
Body		The message to be sent via SMS. Be aware that different mobile service providers may have different character limits for SMS messages, down to 160 characters.
Show Info Text for Success		An optional property to specify a message to display when the message is sent successfully.
Test Send	Button	This button, when clicked, will test the SMS Message feature to ensure it can be accepted by Microsoft Azure.

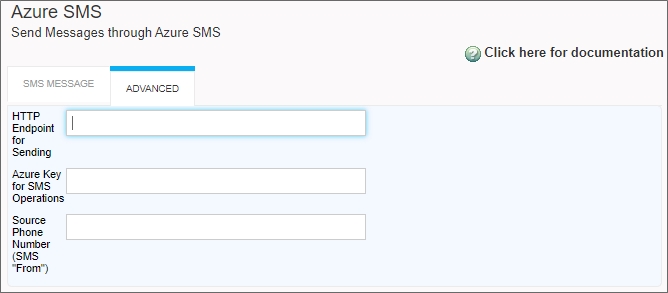

ADVANCED TAB
HTTP Endpoint for Sending		The fully qualified URL of the Azure SMS endpoint for your Azure installation. For each Cloud customer, the Endpoint URL will almost certainly not change, but the customers with access to configure this Custom Task (i.e. customers on systems that BP Logix does not manage) will need to acquire their own Azure Key and phone number to use this Custom Task.
Azure Key for SMS Operations		The cryptographic key value required to access Azure SMS. This value must be obtained from Microsoft Azure. The Key field contains a Base64 representation of an Azure Communication Services key, which an Azure customer can find in the Azure Communication Services Portal.
Source Phone Number (SMS "From")		The phone number from which the SMS message should be sent, e.g., a valid mobile number for a mobile device to which return messages can be routed. Azure Communication Services provides several methods for provisioning a phone number, including through the Communication Services Portal.

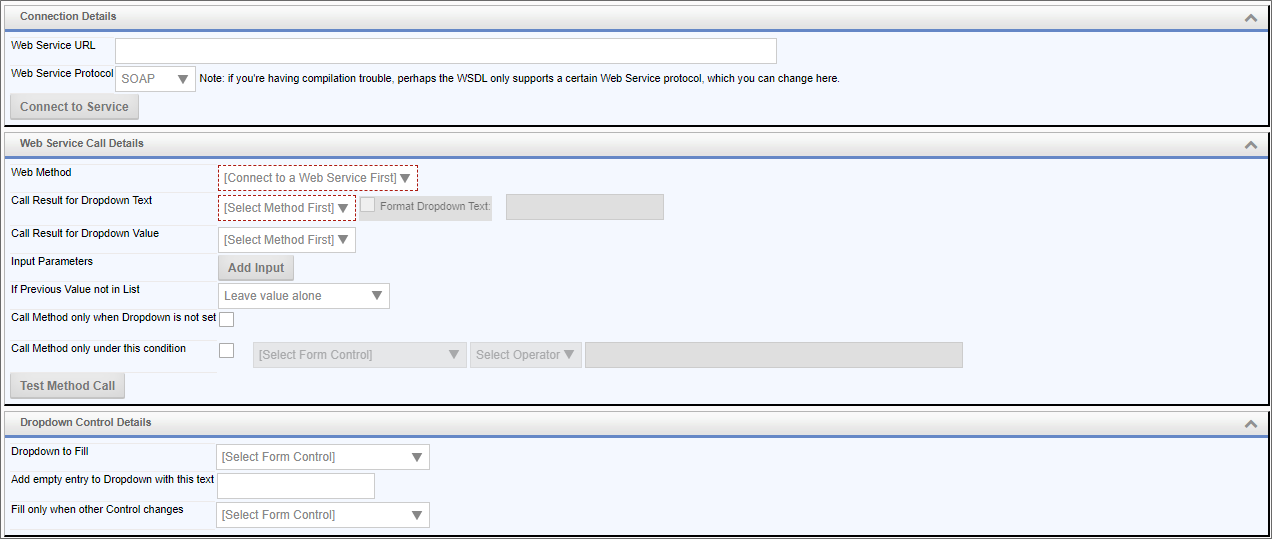

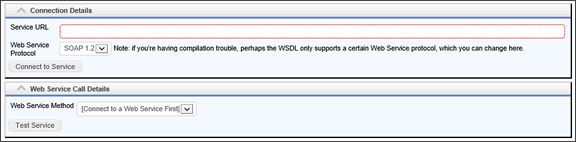

This Custom Form Task will automatically fill a dropdown field on the Form with results from a web service call. Choose the Form dropdown field and the output parameter(s) that should be used to fill the dropdown. This Custom Task should be mapped to the [Form Displayed] event to ensure the dropdown values are always populated.

This Custom Task doesn't support WCF web services.

Configuration Options

OPTION	ATTRIBUTES	DESCRIPTION
Web Service URL		The URL of the web service from which the data is to be retrieved.
Web Service Protocol	SOAP, SOAP 1.2	The communications protocol to use for the web service. If you're having compilation trouble, perhaps the WSDL only supports a certain Web Service protocol, which you can change here.
Web Method	List of Web Service Methods	This is the list of web service methods that are available through the selected Web Service URL. Different web services will expose different methods.
Call Result for Dropdown Text	List of table fields	The Call Result that will be displayed as the text in the dropdown control.
Call Result for Dropdown Value	List of table fields	The Call Result that will be used as the value of the dropdown control.
Input Parameters		Click the Add Input button to add parameters for the web service call.
If Previous Value not in List	Leave value alone, Clear the value in the form, Add the value to the dropdown	How the dropdown value will be altered if the previous value isn't in the list of data returned from SharePoint.
Call method only when Dropdown isn't set		This prevents the call from being re-run if the dropdown has already been populated.
Call method only under this condition		Enables you to set a condition for running the call that populates the dropdown.
Test Method Call		This will run a test call to retrieve the data.
Dropdown to Fill	List of Form fields	The name of the dropdown control that will be filled with Salesforce data.
Add empty entry to Dropdown with this text		Text value for null entries.
Fill Only When Other Control Changes	List of Form fields	Prevents the query from running unless this field changes. This is often used for a field whose value will be used as a filter to limit the data that is returned.

This Custom Task has largely been deprecated by the use of Business Values to return data from a REST service and fill dropdowns via the Fill Dropdowns tab of a Form definition.

This Custom Form Task can fill dropdown options with values from a REST Web Service call. Choose the Form dropdown field and the output parameter(s) that should be used to fill the dropdown. This Custom Task should be mapped to the [Form Displayed] event to ensure the dropdown values are always populated.

Standard Tabs

Credentials Tab

Advanced tabs

Configuration Options

OPTION	ATTRIBUTES	DESCRIPTION

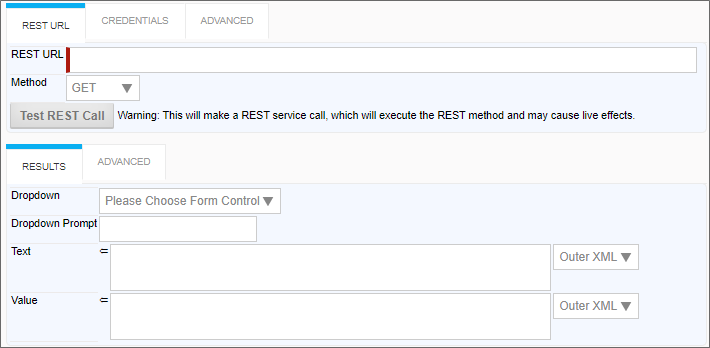

REST URL TAB
REST URL		The URL of the REST Service, including the parameters
Method	Get, Post	The HTTP method of the REST call.
RESULTS TAB
Dropdown control	List of Dropdown Controls	Select the dropdown you wish to fill.
Prompt for empty row (Optional)		An optional prompt to add to create an empty row.
Display Text		The XPath to the field result you wish to show as the display text.
Value		The XPath to the field result you wish to save as the field value.

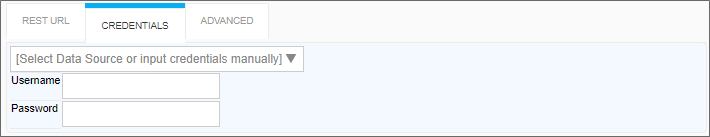

CREDENTIALS TAB
Data Source	List of Compliance Datasources.	You can select a Compliance Datasource to provide the credentials. Otherwise, you can supply the credentials manually using the fields below.
Username		Login information with appropriate credentials to access the REST Service.
Password		Login information with appropriate credentials to access the REST Service.

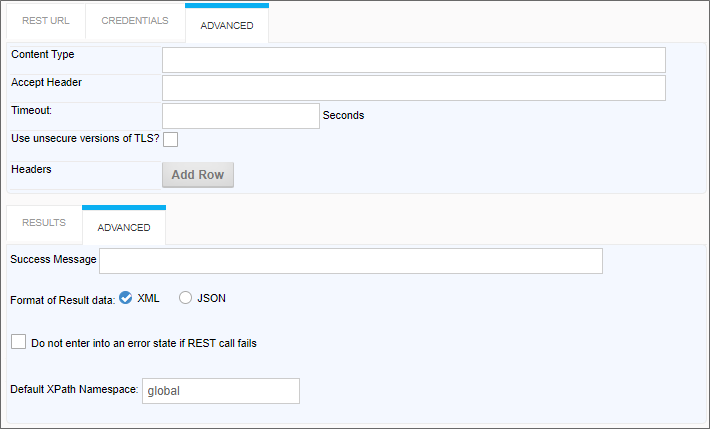

ADVANCED TABS
Content Type		MIME type of the Rest call.
Accept Header		This property enables you to set the "Accept" header of the HTTP Request.
Timeout		The number of seconds to wait before the REST call times out.
Use Insecure versions of TLS?		By default, Process Director won't use TLS 1.0 for the transport layer for security reasons. Checking this option will enables the use of TLS 1.0 if desired.
Headers		You can add additional HTTP headers to the call by clicking the Add Row button to create key/value pairs.
Success Message		Message to display when the results are successfully retrieved.
Format of result data	XML, JSON	The format of the REST source data.
Do not enter into an error state if REST call fails		Checking this option will ensure that, if the REST call fails, the error won't be returned to the form. This is useful when you are using parameters, and a user passes a bad parameter from the form. In that case, you may wish to return nothing and leave the form fields blank, rather than display an error message to the user.
Default XPath namespace	Global	The default namespace is generally correct.

Additional Notes:

If URL parameters are being used in the REST call to pass in form field data, the system variables need to use the '&' encode type. e.g., {&FORM:formfield}.

If you request the results to be returned in JSON format AND have mapped to individual form fields, an XPATH expression is still required when defining the mapping between the results and form field (Typically JSONPath expressions are used with JSON). Further, depending on the JSON string, a double slash may be required in the expression when specifying the JSON identifier, because the JSON string might have translated into an empty root XML node, which would require the double slash. So, if a JSON query with a single slash doesn’t work when you think it should, try prefixing the query with a double slash (//).

This Custom Task has largely been deprecated by the use of Business Values to return data from a REST service and fill fields via the Set Form Data tab of a Form definition.

This Custom Form Task can fill multiple fields on a Form with values from a REST Web Service call. Choose the Form fields and the queries (in XPath) that correspond to data with which to fill the Form fields, or choose to put all of the data into a single Form field. You can also pass data in the URL to the REST Service.

For v2022.03.31 and higher of this Custom Task, the Custom Task can be called even if there is no form instance to use. This can be useful in rare contexts, such as trying to call the build_form_cache.aspx page, which doesn't require any form data to be sent or returned.

Standard Tabs

Credentials Tab

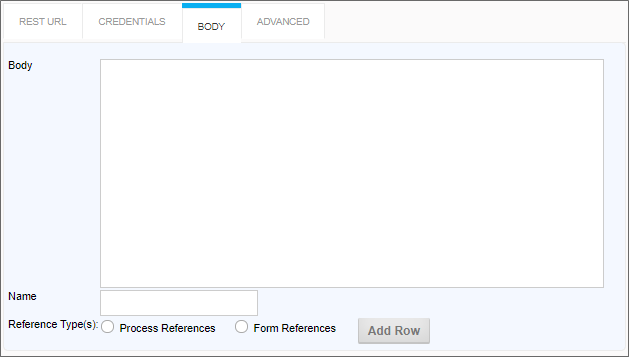

Body Tab

When using rest call with any method other than GET, a Body tab will appear automatically in the UI.

Advanced tabs

Configuration Data

OPTION	ATTRIBUTES	DESCRIPTION

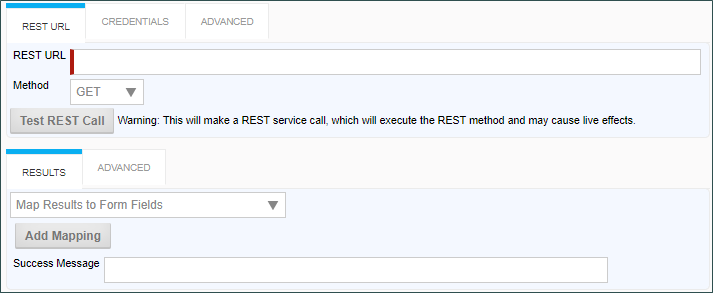

REST URL TAB
REST URL		The URL of the REST Service, including the parameters
Method	GET POST PUT PATCH DELETE	The Web method to use to call the REST service.
RESULTS TAB
Result Mapping Dropdown	Map results to Form Fields Place all data from REST call into a single field Dump Data from REST call into an attachment Dump Result Field from REST call into an Attachment	See the Result Tab Options section below for a detailed explanation of each option.
Success Message		A text message to display when the REST call completes successfully.
BODY TAB
Body		The body of the web request. This can contain JSON, XML, or any other text format accepted by the REST service. Using this field with attachments (multipart web request) will result in this field representing one of the multiple parts of the Request Content. Due to System Variable parsing logic, to use curly braces in the Body (e.g., JSON data), ensure that any curly brace that is NOT part of a System Variable is followed by a new line.
Name		The value for the Content-Disposition header's "name" parameter.
Reference Type(s)	Process References Form References	The type of attachment to include in the REST call for multipart web requests. Additional reference types may be added by clicking the Add Row button; however, if you use a System Variable to specify the attachment in the Body, you should not use the Add Row button to add additional attachments.

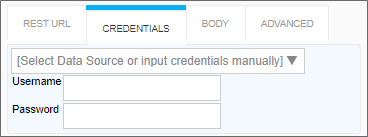

CREDENTIALS TAB
Data Source	List of Compliance Datasources.	You can select a Compliance Datasource to provide the credentials. Otherwise, you can supply the credentials manually using the fields below.
Username		Login information with appropriate credentials to access the REST Service.
Password		Login information with appropriate credentials to access the REST Service.

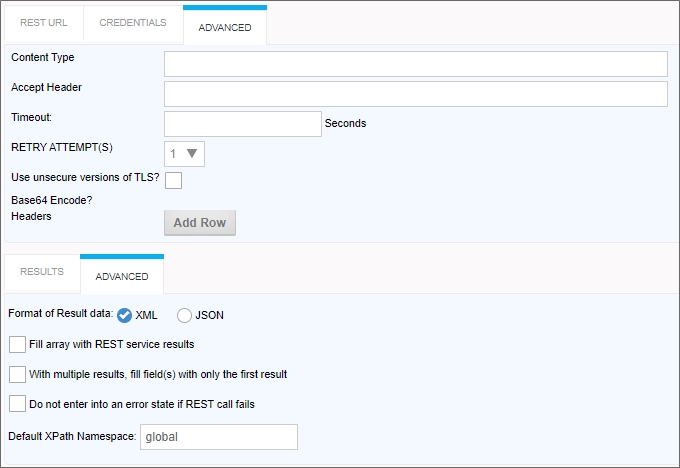

ADVANCED TABS
Content Type		MIME type of the Rest call.
Accept Header		This property enables you to set the "Accept" header of the HTTP Request.
Timeout		The number of seconds to wait before the REST call times out.
Retry Attempts	Number of retries to attempt	Added in v2023.01.26 this field is designed to prevent an issue that may occur when REST POST calls to update data fails without an underlying fault in the Payload or service. This property implements a retry mechanism that often resolves the issue, and eliminates the need for an administrator to re-run the Timeline Activity/Form event that invokes the Custom Task.
Use Insecure versions of TLS?		By default, Process Director won't use TLS 1.0 for the transport layer for security reasons. Checking this option will enables the use of TLS 1.0 if desired.
Base64 Encode		When selected, will encode attachments using Base64 encoding.
Headers		You can add additional HTTP headers to the call by clicking the Add Row button to create key/value pairs.
Format of Result data	XML JSON	Specifies the format of the result data for multipart web requests.
Fill array with REST service results		This option switches between two modes of this Custom Task's execution. When clear, this indicates to make a REST call for each row in an existing array (expecting one value for each field from the call). When set, this indicates to fill an array with the results of the REST call (expecting multiple values for each field from the call).
With multiple results, fill field(s) with only the first result
Do not enter into an error state if REST call fails		Checking this option will ensure that, if the REST call fails, the error won't be returned to the form. This is useful when you are using parameters, and a user passes a bad parameter from the form. In that case, you may wish to return nothing and leave the form fields blank, rather than display an error message to the user.
Default XPath namespace	Global	The default namespace is generally correct.

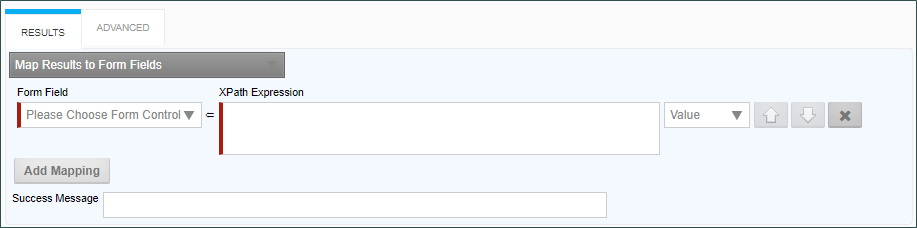

Result Tab Options

Map results to Form Fields

When this option is selected, the following properties can be configured:

Form Field: The Form field into which to place data from a REST field.

XPath Expression: The XPath expression that specifies the location of a REST field in the XML DOM.

Value Dropdown: The data to place in the field. By default, this is the REST field value, but you can choose to use the Inner or Outer XML from the REST return XML.

Additional Form fields can be added by clicking the Add Mapping button to add a new field.

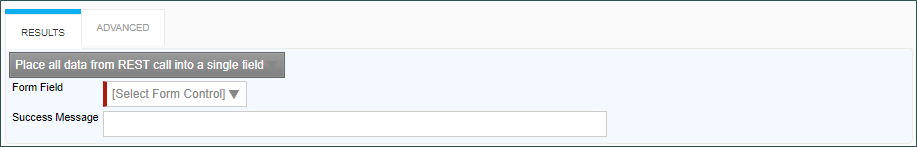

Place all data from REST call into a single field

When this option is selected, the following properties can be configured:

Form Field: The Form field into which the entire REST response will be placed.

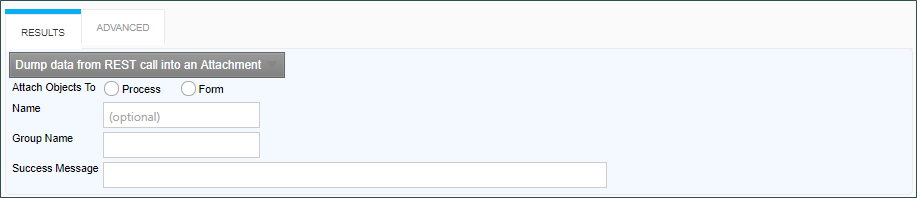

Dump Data from REST call into an attachment

When this option is selected, the following properties can be configured:

Attach Objects to: This property enables you to create either a Form or a Process Attachment from the REST response.

Name: The Name of the attachment file.

Group Name: The desired attachment Group name for the attachment file.

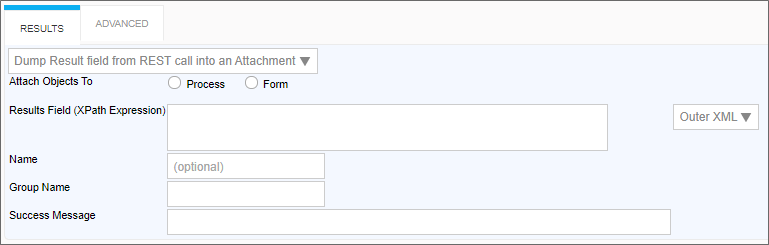

Dump Result Field from REST call into an Attachment

Attach Objects to: This property enables you to create either a Form or a Process Attachment from the REST response.

Results Field (XPATH Expression): The XPATH to the results field. This value can be placed in the Inner or Outer XML, or as a Value by selecting the appropriate value from the dropdown control associated with this property.

Name: The Name of the attachment file.

Group Name: The desired attachment Group name for the attachment file.

Additional Notes:

If URL parameters are being used in the REST call to pass in form field data, the system variables need to use the '&' encode type. e.g., {&FORM:formfield}.

If you request the results to be returned in JSON format AND have mapped to individual form fields, an XPATH expression is still required when defining the mapping between the results and form field (Typically JSONPath expressions are used with JSON). Further, depending on the JSON string, a double slash may be required in the expression when specifying the JSON identifier, because the JSON string might have translated into an empty root XML node, which would require the double slash. So, if a JSON query with a single slash doesn’t work when you think it should, try prefixing the query with a double slash ("//").”

When “Bank of America – PCG Integrated Web Payments” is the selected Gateway Name, this Custom Task will allow payment transactions to be processed through the Bank of America payment gateway using HTTP POST protocol. For more information on this gateway and its implementation, consult the Bank of America document “Payment Collection Gateway Integrated Web Payments HTTP POST API – Gateway Solutions User Guide v2.7.4”.

Custom Task Configuration

Configuration of this Custom Task is performed from the Custom Task Event Mapping tab of the Form Definition. After selecting the Custom Task, adding it to your Form, and selecting a triggering event, click the Configure button to enter its configuration values.

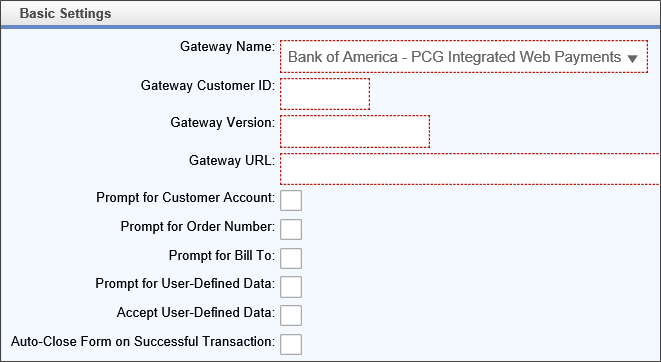

Basic Settings

OPTION	DESCRIPTION
Gateway Name	The gateway to use for processing payment transactions. Entry of this field is required. Its default value is “Bank of America – PCG Integrated Web Payments”.
Gateway Customer ID	The customer identity code required by the gateway. Entry of this field is required. There is no default value. The value to enter in this field must be acquired from Bank of America. (The gateway “application_id” parameter.)
Gateway Version	The release version of the gateway software. Entry of this field is required. There is no default value. The value to enter in this field must be acquired from Bank of America. (The gateway “message_version” parameter.)
Gateway URL	The URL of the gateway. Valid values are the URL of the sandbox gateway environment, or the production gateway environment. Both of these URLs must be acquired from Bank of America. Entry of this field is required. There is no default value. (The “action” of the form when the gateway.)
Prompt for Customer Account	Check this box to pass a “Customer Account” field to the gateway for inclusion in the payment transaction. Entry of this field isn't required, as passing a customer account to the gateway isn't required, but may be desirable. The default value is unchecked.
Prompt for Order Number	Check this box to pass an “Order Number” field to the gateway for inclusion in the payment transaction. Entry of this field isn't required, as passing an order number to the gateway isn't required, but may be desirable. The default value is unchecked. If an order number isn't provided, the gateway will use its Payment ID as an order number when processing the transaction.
Prompt for Bill To	Check this box to pass “Bill To” name and address information to the gateway, which is then used to populate the gateway payment page. Entry of this field isn't required, as passing the bill to information to the gateway isn't required, but may be desirable. The default value is unchecked.
Prompt for User-Defined Data	Check this box to pass a “User-Defined Data” field from the payment transaction Form to the gateway for inclusion in the payment transaction. Entry of this field isn't required, as passing user-defined data to the gateway isn't required, but may be desirable. The default value is unchecked.
Accept Payment Date	Check this box to capture the payment date from the gateway, and save it in the payment transaction Form. Entry of this field isn't required, as capturing the payment date from the gateway isn't required, but may be desirable. The default value is unchecked.
Accept User-Defined Data	Check this box to capture the user-defined data from the gateway, and save it in the payment transaction Form. Entry of this field isn't required, as capturing the user-defined data from the gateway isn't required, but may be desirable. The default value is unchecked.
Auto-Close Form on Successful Transaction	Check this box to automatically close your payment transaction Form upon successful completion of a payment transaction. Entry of this field isn't required. The default value is unchecked. If you check this box, you'll need to modify and use the Sample Payment Processing Form Script. (See the Auto-Close Form on Successful Transaction section below for details.)

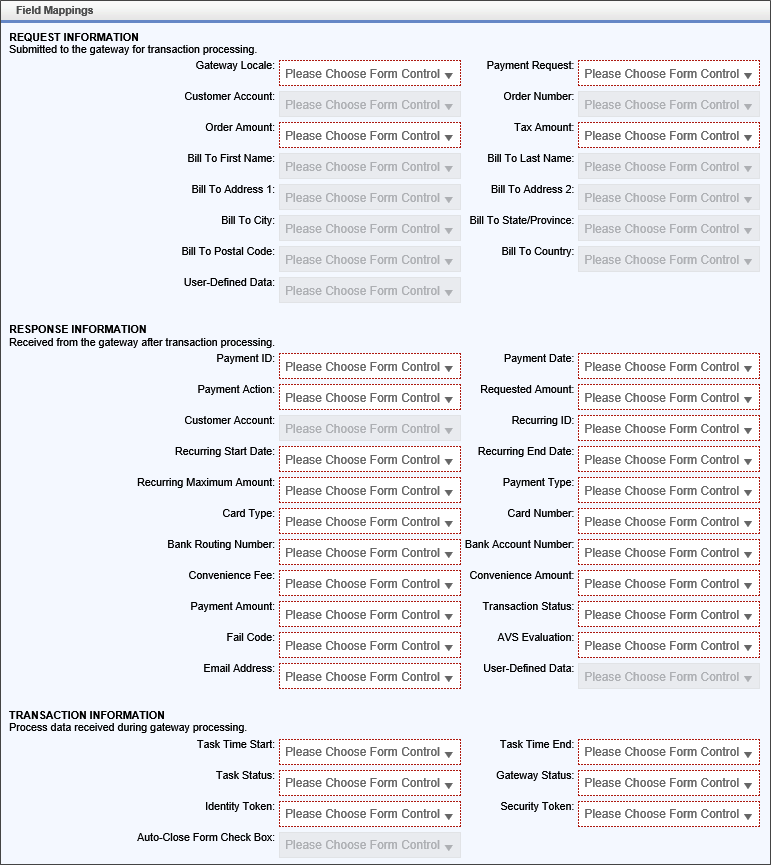

Field Mappings

Request Information

You'll notice that there are some fields in the screen shot above that are disabled. Those fields are conditionally disabled based upon the selections made in the Basic Settings and Advanced Settings sections. For example, the Customer Account field is disabled when the “Prompt for Customer Account” field in Basic Settings is unchecked.

OPTION	DESCRIPTION
Gateway Locale	Maps a Drop-Down List control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Gateway Locale” in Advanced Settings is “Select at Runtime”. There is no default value. (This is the gateway “language” parameter.) The Drop-Down List control on the parent Form must have values that are recognized by the Custom Task. Refer to “Request Information – Gateway Locale” in the Runtime Operation section of this document for a list of valid values.
Payment Request	Maps a Drop-Down List control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payment Request” in Advanced Settings is “Select at Runtime”. There is no default value. (This is the gateway “action_type” parameter.) The Drop-Down List control on the parent Form must have values that are recognized by the Custom Task. Refer to “Request Information – Payment Request” in the Runtime Operation section of this document for a list of valid values.
Customer Account	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Customer Account” is checked. There is no default value. (This is the gateway “client_account_number” parameter.)
Order Number	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Order Number” is checked. There is no default value. (This is the gateway “order_number” parameter.) The data of this field is used only for processing the transaction. It doesn’t appear in the response, or in the gateway-generated receipt.
Order Amount	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (The gateway “amount” parameter.)
Tax Amount	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “tax_amount” parameter.) The data of this field is used only for processing the transaction. It doesn’t appear in the response, or in the gateway-generated receipt.
Bill To First Name	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (The gateway “billing_firstname” parameter.)
Bill To Address 1	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (This is the gateway “billing_address” parameter.)
Bill To Address 2	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (This is the gateway “billine_address2” parameter.)
Bill To City	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (This is the gateway “billing_city” parameter.)
Bill To State/Province	Maps a Drop-Down List control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (This is the gateway “billing_state” parameter.) The Drop-Down List control on the parent Form must have values that correspond to the states and provinces that we support. You should include in your Drop-Down List control only those states and provinces that you require. Refer to “Request Information – Bill To State/Province” in the Runtime Operation section of this document for a list of state/province names and codes.
Bill To Postal Code	Maps a Drop-Down List control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (This is the gateway “billing_zip” parameter.)
Bill To Country	Maps a Drop-Down List control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Bill To” is checked. There is no default value. (This is the gateway “billing_country_id” parameter.) The Drop-Down List control on the parent Form must have values that correspond to the countries that we support. You should include in your Drop-Down List control only those countries that you require. Refer to “Request Information – Bill To Country” in the Runtime Operation section of this document for a list of country names and codes.
User-Defined Data	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for User-Defined Data” is checked. There is no default value. (These are the gateway “user_defined1” through “user_defined10” parameters, where the data to each parameter is separated by a pipe (|) character.)

Response Information

The fields of this section are received from the gateway after transaction process.

OPTION	DESCRIPTION
Payment ID	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (The gateway “transaction_id” parameter.)
Payment Date	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “payment_date” parameter.)
Payment Action	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payment Request” is “Recurring Payments” or “Select at Runtime”. There is no default value. (This is the gateway “action_sub_type” parameter.)
Requested Amount	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “amount” parameter.)
Customer Account	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Prompt for Customer Account” is checked. There is no default value. (This is the gateway “client_account_number” parameter.)
Recurring ID	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payment Request” is “Recurring Payments” or “Select at Runtime”. There is no default value. (This is the gateway “payment_plan_id” parameter.)
Recurring Start Date	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payment Request” is “Recurring Payments” or “Select at Runtime”. There is no default value. (This is the gateway “start_date” parameter.)
Recurring End Date	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payment Request” is “Recurring Payments” or “Select at Runtime”. There is no default value. (This is the gateway “end_date” parameter.)
Recurring Maximum Amount	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payment Request” is “Recurring Payments” or “Select at Runtime”. There is no default value. (This is the gateway “maximum_payment_amount_allowed” parameter.)
Payment Type	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “payment_type” parameter.)
Card Type	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payments Allowed” is “Card Only” or “Card or Check”. There is no default value. (This is the gateway “card_type” parameter.)
Card Number	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payments Allowed” is “Card Only” or “Card or Check”. There is no default value. (This is the gateway “partial_card_number” parameter.)
Bank Routing Number	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payments Allowed” is “Check Only” or “Card or Check”. There is no default value. (This is the gateway “routing_transit_number” parameter.)
Bank Account Number	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Payments Allowed” is “Check Only” or “Card or Check”. There is no default value. (This is the gateway “partial_acct_number” parameter.)
Convenience Fee	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “convenience_fee_collected” parameter.)
Convenience Amount	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “convenience_fee_amount” parameter.)
Payment Amount	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “total_amount” parameter.)
Transaction Status	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “transaction_status” parameter.)
Fail Code	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “fail_code” parameter.)
AVS Evaluation	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “avs_response” parameter.)
Email Address	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required. There is no default value. (This is the gateway “email_address” parameter.)
User-Defined Data	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. Entry of this field is required only when “Accept User-Defined Data” is checked. There is no default value. (These are the gateway “user_defined1” through “user_defined10” parameters, where the data from each parameter is separated by a pipe (|) character.)

Transaction Information

The fields of this section are received from the gateway and the Custom Task during gateway processing.

OPTION	DESCRIPTION
Task Time Start	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. This is the date and time the Custom Task instance started processing of the transaction. Entry of this field is required. There is no default value.
Task Time End	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. This is the date and time the Custom Task instance ended processing of the transaction. Entry of this field is required. There is no default value.
Task Status	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. This is a value that represents the final execution status of the Custom Task. Entry of this field is required. There is no default value.
Gateway Status	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. This is a value that represents the final status of the transaction. Valid values are “SUCCESS”, “FAILURE”, or “EXPIRED”. Entry of this field is required. There is no default value.
Identity Token	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. This is a value that is created by Process Director, and is used to uniquely identify each transaction. Entry of this field is required. There is no default value. (This is the gateway “remittance_id” parameter.)
Security Token	Maps a Textbox control on the payment transaction Form to its corresponding Custom Task control. This is a value that is created by the Bank of America gateway, and is used to uniquely identify the transaction. Entry of this field is required. There is no default value. (This is the gateway “security_id” parameter.)
Auto-Close Form Check Box	Maps a Check Box control on the payment transaction Form to its corresponding Custom Task control. When this control is enabled, it will be “checked” by Process Director upon successful completion of a financial transaction. This field is required only when the Auto-Close Form on Successful Transaction check box is checked. There is no default value.

To facilitate the form auto-close feature, you must customize the Sample Payment Processing Form Script, and then associate it with your payment transaction Form. You'll find the following instructional text in the BP_Display method of the sample Form script file:

// NOTE: You must replace the text "YourControlNameGoesHere" below with
// the associated control names on your payment transaction Form.
// When finished, save and upload this script file.

    // The Form Transaction Auto-Close check box control name.
    string FORM_CONTROL_TRANSACTION_AUTO_CLOSE = "YourControlNameGoesHere";

    // The Form Transaction Task Status input control name.
    string FORM_CONTROL_TRANSACTION_TASK_STATUS = "YourControlNameGoesHere";

    // The Form Transaction Gateway Status input control name.
    string FORM_CONTROL_TRANSACTION_GATEWAY_STATUS = "YourControlNameGoesHere";

    // The Form Response Transaction Status input control name.
    string FORM_CONTROL_RESPONSE_TRANSACTION_STATUS = "YourControlNameGoesHere";

    // The Form Response Fail Code input control name.
    string FORM_CONTROL_RESPONSE_FAIL_CODE = "YourControlNameGoesHere";

Process Director will automatically populate these controls on your payment transaction Form at the conclusion of the payment transaction. A successful transaction is one that has these values:

• Transaction Task Status = COMPLETED
• Transaction Gateway Status = SUCCESS
• Response Transaction Status = SUCCESS
• Response Fail Code = APPROVED

Upon completion of the financial transaction, if the control values indicate a successful transaction, the sample Form script will automatically save the form, and close the Form. If the Form is running within a Timeline Activity, it will complete that activity with a result of “Payment Completed”.

You may capture this result by specifying “Payment Completed” as a valid result in your Timeline Activity, and setting the “Show this result button when” condition to a value that is never true.

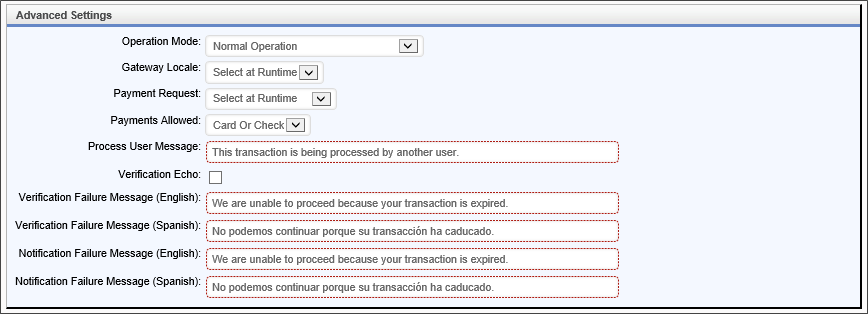

Advanced Settings

OPTION	DESCRIPTION
Operation Mode	Selects the operational mode of the Custom Task, which can be “Normal Operation”, or any of a number of gateway-specific test conditions. This shouldn't be changed unless you are testing of a specific error condition. The default choice is “Normal Operation”.
Gateway Locale	Identifies the locale (language and country) to be used by the gateway when presenting payment information. Valid choices are “English”, “Spanish”, or “Select at Runtime”. If “Select at Runtime” is selected, the payment transaction Form must include a Drop-Down List control that is mapped to “Request Gateway Locale”. (See “Request Gateway Locale” above for details.) The default choice is “Select at Runtime”. (This is the gateway “language” parameter.)
Payment Request	Identifies the type of payment that can be made, and the required control mapping. Valid choices are “One-Time Payment”, “Recurring Payments”, or “Select at Runtime”. If “Select at Runtime” is selected, the payment transaction Form must include a Drop-Down List control that is mapped to “Request Payment Request”. (See “Request Payment Request” above for details.) The default choice is “Select at Runtime”. (This is the gateway “action_type” parameter.)
Payments Allowed	Identifies whether bank and/or credit control mapping is required. Valid choices are “Card or Check”, “Card Only”, or “Check Only”. The default choice is “Card or Check”.
Process User Message	The error message that the Custom Task will display when another user has started processing the same transaction. Entry of this field is required. The default value is “This transaction is being processed by another user.”
Verification Echo	Determines if the Bank of America gateway will issue a Notification message on a failed Verification message. When checked, a Verification message is issued on a failed Notification message. The default value is unchecked. (We recommend that you leave this field unchecked.)
Verification Failure Message (English)	The message that the Bank of America gateway presents on its user interface when “Redirect On Failure” is set to “No”, “Gateway Locale” is set to “English”, and a transaction verification failure occurs. Entry of this field is required. The default value is “We are unable to proceed because your transaction is expired.” (This is the gateway “user_message” parameter.)
Verification Failure Message (Spanish)	The message that the Bank of America gateway presents on its user interface when “Redirect On Failure” is set to “No”, “Gateway Locale” is set to “Spanish”, and a transaction verification failure occurs. Entry of this field is required. The default value is “No podemos continuar porque su transacción ha caducado.” (This is the gateway “user_message” parameter.)
Notification Failure Message (English)	The message that the Bank of America gateway presents on its user interface when “Redirect On Failure” is set to “No”, “Gateway Locale” is set to “English”, and a transaction notification failure occurs. Entry of this field is required. The default value is “We are unable to proceed because your transaction is expired.” (This is the gateway “user_message” parameter.)
Notification Failure Message (Spanish)	The message that the Bank of America gateway presents on its user interface when “Redirect On Failure” is set to “No”, “Gateway Locale” is set to “Spanish”, and a transaction notification failure occurs. Entry of this field is required. The default value is “No podemos continuar porque su transacción ha caducado.” (This is the gateway “user_message” parameter.)

Custom Task Runtime Operation

The Fill Fields from Payment Gateway Custom Task is designed to be called only from a payment transaction Form.The Custom Task automatically saves the form before it connects with the payment gateway, thereby making the form unable to trigger a Process Timeline. In addition, when control returns to the form after the payment transaction, the form is no longer a “new form instance”, as it’s already been saved.

At runtime, this Custom Task will expect a number of Process Director controls to exist on the payment transaction Form from which it is being called. The exact number of controls will depend upon your Custom Task configuration.

Payment Transaction Form Controls

The following fields require controls to exist on your payment transaction Form:

Request Information

• Order Amount
• Tax Amount

Response Information

• Payment ID
• Payment Date
• Requested Amount
• Payment Type
• Convenience Fee
• Convenience Amount
• Payment Amount
• Transaction Status
• Fail Code
• AVS Evaluation
• Email Address

Transaction Information

• Task Time Start
• Task Time End
• Task Status
• Gateway Status
• Identity Token
• Security Token

The following fields may require controls to exist on your payment transaction Form depending upon the configuration of your Custom Task:

Request Information

• Gateway Locale (required when Advanced Settings – Gateway Locale is “Select at Runtime”)
• Payment Request (required when Advanced Settings – Payment Request is “Select at Runtime”)
• Customer Account (required when Basic Settings – Prompt for Customer Account is checked)
• Order Number (required when Basic Settings – Prompt for Order Number is checked)
• Bill To First Name (required when Basic Settings – Prompt for Bill To is checked)
• Bill To Last Name (required when Basic Settings – Prompt for Bill To is checked)
• Bill To Address 1 (required when Basic Settings – Prompt for Bill To is checked)
• Bill To Address 2 (required when Basic Settings – Prompt for Bill To is checked)
• Bill To City (required when Basic Settings – Prompt for Bill To is checked)
• Bill To State/Province (required when Basic Settings – Prompt for Bill To is checked)
• Bill To Postal Code (required when Basic Settings – Prompt for Bill To is checked)
• Bill To Country (required when Basic Settings – Prompt for Bill To is checked)
• User-Defined Data (required when Basic Settings – Prompt for User-Defined Data is checked)

Response Information

• Payment Action (required for Recurring Payments)
• Customer Account (required when Basic Settings – Prompt for Customer Account is checked)
• Recurring ID (required for Recurring Payments)
• Recurring Start Date (required for Recurring Payments)
• Recurring End Date (required for Recurring Payments)
• Recurring Maximum (required for Recurring Payments)
• Card Type (required for Card payments)
• Card Number (required for Card payments)
• Bank Routing Number (required for Check payments)
• Bank Account Number (required for Check payments)
• User-Defined Data (required when Basic Settings – Accept User-Defined Data is checked)

Request Information – Gateway Locale

If you've configured the Custom Task to prompt the user for the locale (“English” or “Spanish”) that should be used by the gateway, your payment transaction Form must include a Drop-Down List control that includes these two choices, where the value of “English” is “en-US”, and the value of “Spanish” is “es-MX”.

Request Information – Payment Request

If you've configured the Custom Task to prompt the user for the type of payment request to be submitted (“One-Time Payment” or “Recurring Payments”), your payment transaction Form must include a Drop-Down List control that includes these two choices, where the value of “One-Time Payment” is “1”, and the value of “Recurring Payments” is “2”.

Request Information – Bill To State/Province

If you've configured the Custom Task to prompt for “Bill To” information, your payment transaction Form must include a Drop-Down List control for selection of a state or province. These state or province values are only valid for the countries of United States and Canada. When any other country is selected, the Bill To State/Province control must have a value of “XX”. The valid list of states and provinces, with both display and data values, is specified below.

State/Province (Text)	Code (Value)	State/Province (Text)	Code (Value)
NO STATE/PROVINCE	XX	New Hampshire	NH
Alabama	AL	New Jersey	NJ
Alaska	AK	New Mexico	NM
American Samoa	AS	New York	NY
Arizona	AZ	North Carolina	NC
Arkansas	AR	North Dakota	ND
Armed Forces Africa	AE	Northern Mariana Islands	MP
Armed Forces Americas	AA	Ohio	OH
Armed Forces Canada	AE	Oklahoma	OK
Armed Forces Europe	AE	Oregon	OR
Armed Forces Middle East	AE	Palau	PW
Armed Forces Pacific	AP	Pennsylvania	PA
California	CA	Puerto Rico	PR
Colorado	CO	Rhode Island	RI
Connecticut	CT	South Carolina	SC
Delaware	DE	South Dakota	SD
Dist. of Columbia	DC	Tennessee	TN
Federated States of Micronesia	FM	Texas	TX
Florida	FL	Utah	UT
Georgia	GA	Vermont	VT
Guam	GU	Virgin Islands	VI
Hawaii	HI	Virginia	VA
Idaho	ID	Washington	WA
Illinois	IL	West Virginia	WV
Indiana	IN	Wisconsin	WI
Iowa	IA	Wyoming	WY
Kansas	KS	Alberta	AB
Kentucky	KY	British Columbia	BC
Louisiana	LA	Manitoba	MB
Maine	ME	New Brunswick	NB
Marshall Islands	MH	Newfoundland and Labrador	NF
Maryland	MD	Northwest Territories	NT
Massachusetts	MA	Nova Scotia	NS
Michigan	MI	Nunavut	NU
Minnesota	MN	Ontario	ON
Mississippi	MS	Prince Edward Island	PE
Missouri	MO	Quebec	QC
Montana	MT	Saskatchewan	SK
Nebraska	NE	Yukon	YT
Nevada	NV

Request Information – Bill To Count

If you've configured the Custom Task to prompt for “Bill To” information, your payment transaction Form must include a Drop-Down List control for selection of a country. The valid list of countries, with both display and data values, is specified below.

Country (Text)	Code (Value)	Country (Text)	Code (Value)
Afghanistan	AF	Lesotho	LS
Aland Islands	AX	Liberia	LR
Albania	AL	Libya	LY
Algeria	DZ	Liechtenstein	LI
American Samoa	AS	Lithuania	LT
Andorra	AD	Luxembourg	LU
Angola	AO	Macao	MO
Anguilla	AI	Macedonia	MK
Antarctica	AQ	Madagascar	MG
Antigua and Barbuda	AG	Malawi	MW
Argentina	AR	Malaysia	MY
Armenia	AM	Maldives	MV
Aruba	AW	Mali	ML
Australia	AU	Malta	MT
Austria	AT	Marshall Islands	MH
Azerbaijan	AZ	Martinique	MQ
Bahamas	BS	Mauritania	MR
Bahrain	BH	Mauritius	MU
Bangladesh	BD	Mayotte	YT
Barbados	BB	Mexico	MX
Belarus	BY	Micronesia	FM
Belgium	BE	Moldova	MD
Belize	BZ	Monaco	MC
Benin	BJ	Mongolia	MN
Bermuda	BM	Montenegro	ME
Bhutan	BT	Montserrat	MS
Bolivia	BO	Morocco	MA
Bonaire	BQ	Mozambique	MZ
Bosnia Herzegovina	BA	Myanmar	MM
Botswana	BW	Namibia	NA
Bouvet Island	BV	Nauru	NR
Brazil	BR	Nepal	NP
British Indian Ocean Territory	IO	Netherlands	NL
British Virgin Islands	VG	New Caledonia	NC
Brunei Darussalam	BN	New Zealand	NZ
Bulgaria	BG	Nicaragua	NI
Burkina Faso	BF	Niger	NE
Burundi	BI	Nigeria	NG
Côte d'Ivoire	CI	Niue	NU
Cambodia	KH	Norfolk Island	NF
Cameroon	CM	Northern Mariana Islands	MP
Canada	CA	Norway	NO
Cape Verde	CV	Oman	OM
Cayman Islands	KY	Pakistan	PK
Central African Republic	CF	Palau	PW
Chad	TD	Palestine	PS
Chile	CL	Panama	PA
China	CN	Papua New Guinea	PG
Christmas Island	CX	Paraguay	PY
Cocos (Keeling Islands	CC	Peru	PE
Colombia	CO	Philippines	PH
Comoros	KM	Pitcairn	PN
Congo	CG	Poland	PL
Cook Islands	CK	Portugal	PT
Costa Rica	CR	Puerto Rico	PR
Croatia	HR	Qatar	QA
Cuba	CU	Reunion	RE
Curaçao	CW	Romania	RO
Cyprus	CY	Russian Federation	RU
Czech Republic	CZ	Rwanda	RW
Democratic Republic of the Congo	CD	Saint Barthalemy	BL
Denmark	DK	Saint Helena	SH
Djibouti	DJ	Saint Kitts and Nevis	KN
Dominica	DM	Saint Lucia	LC
Dominican Republic	DO	Saint Martin (French)	MF
Ecuador	EC	Saint Pierre and Miquelon	PM
Egypt	EG	Saint Vincent and the Grenadines	VC
El Salvador	SV	Samoa	WS
Equatorial Guinea	GQ	San Marino	SM
Eritrea	ER	Sao Tome and Principe	ST
Estonia	EE	Saudi Arabia	SA
Ethiopia	ET	Senegal	SN
Falkland Islands (Malvinas	FK	Serbia	RS
Faroe Islands	FO	Seychelles	SC
Fiji	FJ	Sierra Leone	SL
Finland	FI	Singapore	SG
France	FR	Saint Maarten (Dutch)	SX
French Guiana	GF	Slovakia	SK
French Polynesia	PF	Slovenia	SI
French Southern Territories	TF	Solomon Islands	SB
Gabon	GA	Somalia	SO
Gambia	GM	South Africa	ZA
Georgia	GE	South Georgia, South Sandwich Islands	GS
Germany	DE	South Sudan	SS
Ghana	GH	Spain	ES
Gibraltar	GI	Sri Lanka	LK
Greece	GR	Sudan	SD
Greenland	GL	Suriname	SR
Grenada	GD	Svalbard and Jan Mayen	SJ
Guadeloupe	GP	Swaziland	SZ
Guam	GU	Sweden	SE
Guatemala	GT	Switzerland	CH
Guernsey	GG	Syrian Arab Republic	SY
Guinea	GN	Taiwan	TW
Guinea-Bissau	GW	Tajikistan	TJ
Guyana	GY	Thailand	TH
Haiti	HT	Timor-Leste	TL
Heard Island and McDonald Islands	HM	Togo	TG
Holy See (Vatican City State)	VA	Tokelau	TK
Honduras	HN	Tonga	TO
Hong Kong	HK	Trinidad and Tobago	TT
Hungary	HU	Tunisia	TN
Iceland	IS	Turkey	TR
India	IN	Turkmenistan	TM
Indonesia	ID	Turks and Caicos Islands	TC
Iran	IR	Tuvalu	TV
Iraq	IQ	Uganda	UG
Ireland	IE	Ukraine	UA
Isle of Man	IM	United Arab Emirates	AE
Israel	IL	United Kingdom	GB
Italy	IT	United Republic of Tanzania	TZ
Jamaica	JM	United States	US
Japan	JP	United States Minor Outlying Islands	UM
Jersey	JE	Uruguay	UY
Jordan	JO	US Virgin Islands	VI
Kazakhstan	KZ	Uzbekistan	UZ
Kenya	KE	Vanuatu	VU
Kiribati	KI	Venezuela	VE
Korea	KP	Viet Nam	VN
Korea	KR	Wallis and Futuna	WF
Kuwait	KW	Western Sahara	EH
Kyrgyzstan	KG	Yemen	YE
Lao People's Democratic Republic	LA	Zambia	ZM
Latvia	LV	Zimbabwe	ZW
Lebanon	LB

Request Information – User-Defined Data

If you've configured the Custom Task to prompt for user-defined data, your payment transaction Form must include a Textbox control for this text value. The maximum length of the user-defined data is 5,000 characters, as this gateway supports 10 user-defined fields of up to 500 characters each. To place specific data into specific user-defined fields, you must separate the data with a pipe (|) character. For example, if you intend to populate the first three gateway user-defined fields with the values of the controls “Field1”, “Field2”, and “Field3” on your payment transaction Form, you'll populate the User-Defined Data field on your payment transaction Form with a Set Form Data field that sets the User-Defined Data control value to the string “{:Field1}|{:Field2}|{:Field3}”, where the pipe (|) character separates each field value.

Response Information – Payment Type

The type of payment used will be indicated in the Payment Type control:

• CREDIT/DEBIT = A credit or debit card was used
• PERSONAL CHECK = A personal check was used
• BUSINESS CHECK = A business check was used

Response Information – Response Card Type

When a card is used to make a payment, the following values will be seen in the Card Type control:

• AMEX = American Express
• DISC_NOV = Discover / Novus
• MC = MasterCard
• MC_DBT = MasterCard Debit
• VISA = Visa
• VISA_DBT = Visa Debit

Response Information – User-Defined Data

If you've configured the Custom Task to accept user-defined data, your payment transaction Form must include a Textbox control for this text value. The maximum length of the user-defined data is 5,000 characters, as this gateway supports 10 user-defined fields of up to 500 characters each. As data is read from each gateway user-defined field, it is concatenated to the one User-Defined Data control on your payment transaction Form, where each field is separated by a pipe (|) character. For example, if you intend to accept data from the first three gateway user-defined fields (“user_defined1”, “user_defined2”, and “user_defined3”), at the conclusion of the transaction the User-Defined Data control on your payment transaction Form will contain the string “user_defined1|user_defined2|user_defined3”, where the pipe (|) character separates each field value.

Transaction Response Analysis

Determining the success or failure of a payment transaction, and the cause of a failure when it occurs, depends upon the values held in several controls on your payment transaction Form at the conclusion of payment processing. Here are a few guidelines to assist in making your determination.

When a successful transaction occurs, you'll typically see all of the following:

1. Transaction Task Status = “COMPLETED”
2. Transaction Gateway Status = “SUCCESS”
3. Response Transaction Status = “SUCCESS”
4. Response Fail Code = “APPROVED”
5. Response AVS Evaluation = “ADDRESS MATCH, POSTAL CODE MATCH”, “ADDRESS MATCH, NO POSTAL CODE MATCH”, or “NO ADDRESS MATCH, POSTAL CODE MATCH”

When an unsuccessful transaction occurs, you may see one or more of the following:

1. Transaction Task Status = “PROCESSING STOPPED: Mode=Operation Mode”, where “Operation Mode” could be:
   1. BofA_FailBeforeTableRowAdd
   2. BofA_FailBeforeVerification
   3. BofA_FailDuringVerification
   4. BofA_FailDuringNotification
   5. All of these errors are a result of selecting a test in the Operation Mode configuration control.
2. Transaction Task Status = “PROCESSING STOPPED: Status=Form Status”, where “Form Status” could be:
   1. Overwritten: Another user has submitted a payment for the same payment transaction Form instance.
   2. Success: Another user has completed payment for the same payment transaction Form instance.
3. Transaction Gateway Status = “FAILURE”
4. Transaction Gateway Status = “EXPIRED”
5. Response Transaction Status = “FAILURE”
6. Response Fail Code = “DUPLICATE”
7. Response Fail Code = “DECLINED (BOA-code)”, where “code” is a Bank of America payment failure code. (See the Bank of America document “Payment Collection Gateway – Testing Information and Checklists – Gateway Solutions User Guide – Version 4.6” for an explanation of the code.)
8. Response Fail Code = “ERROR (BOA-code)”, where “code” is a Bank of America payment failure code. (See the Bank of America document “Payment Collection Gateway – Testing Information and Checklists – Gateway Solutions User Guide – Version 4.6” for an explanation of the code.)
9. Response AVS Evaluation = “NO ADDRESS MATCH, NO POSTAL CODE MATCH”, or “UNAVAILABLE”

Payment Gateway Demo Application

We have included the Process Director application “Payment Gateway Demo” for your use. It is the application we used during the development of this Custom Task. It presents all possible fields without regard to fields that may be enabled or disabled through Custom Task configuration. The Demo is located in the most recent version of the [Samples] folder that contains the sample files compiled by BP Logix. The Samples are available for download from the Downloads page of the BP Logix Support site.

This Custom Tasks doesn't support WCF web services.

This Custom Form Task will make a Web Service Call, sending data from the running form as inputs to the method.

Configuration Options

OPTION	ATTRIBUTES	DESCRIPTION
Service URL		The URL of the web service from which the data is to be retrieved.

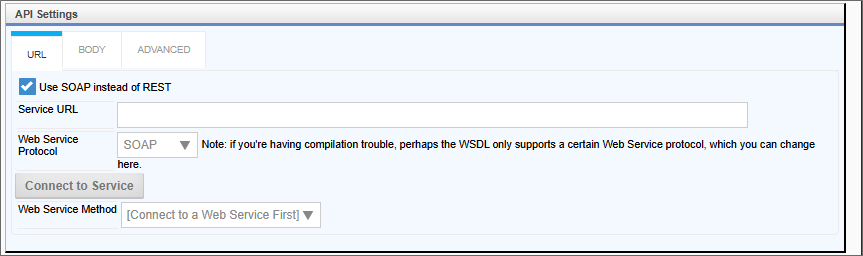

Web Service Protocol	SOAP, SOAP 1.2	The communications protocol to use for the web service. If you're having compilation trouble, perhaps the WSDL only supports a certain Web Service protocol, which you can change here.
Web Service Method	List of Web Service Methods	This is the list of web service methods that are available through the selected Web Service URL. Different web services will expose different methods.

Once you select a web service method, the appropriate parameters for that web service will appear in the configuration screen. You can then map those parameters to fields from a Form.

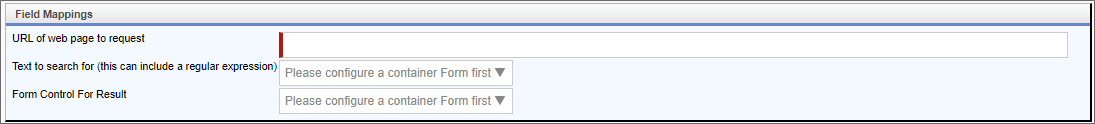

This Custom Form Task will search a specified web page for a specified text string, including a Regular Expression, and return the number of times the search text is found on a web page.

Configuration Options

OPTION	ATTRIBUTES	DESCRIPTION
URL of web page to request		The URL of the web page containing the text to be searched.
Text to Search	Form Control	The field that will supply the search string to look for on the web page.
Form control for result	Form Control	This is the field that will display the number of matches found by the search.

This Custom Task is specifically designed for use with the Vaccine Tracking Application. It uses the Form Recognizer component to provide OCR text recognition for Vaccine Cards. It is specifically designed to extract text from Vaccine Card images, and not for general use to fill form fields for other use cases. This CT requires a separately-licensed Application Key from BP Logix to access the Form Recognizer.

For Process Director Vaccine Tracking application users, this Form Custom Task can fill multiple fields on a Form with values from the Form Recognizer REST Web Service for Vaccination Cards. You can choose the Form fields and the queries (in XPath) that correspond to data with which to fill the Form fields, or choose to put all of the data into a single Form field. You can also pass data in the URL to the REST Service.

Standard Tabs

Settings/Advanced tabs

Configuration

OPTION	ATTRIBUTES	DESCRIPTION
REST URL TAB
REST URL		The URL of the REST Service, including the parameters
Method	GET POST PUT PATCH DELETE	The Web method to use to call the REST service.
RESULTS TAB
Result Mapping Dropdown	Map results to Form Fields Place all data from REST call into a single field Dump Data from REST call into an attachment Dump Result Field from REST call into an attachment	See the Result Tab Options section below for a detailed explanation of each option.
Success Message		A text message to display when the REST call completes successfully.

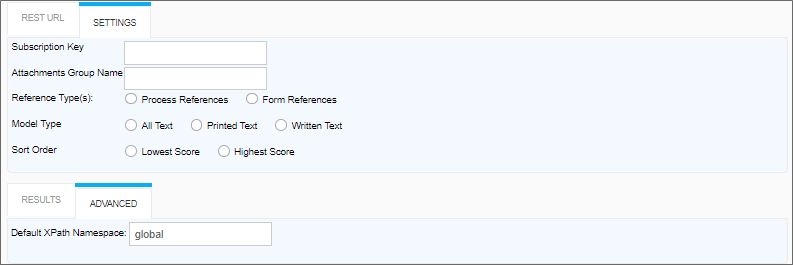

SETTINGS TAB
Subscription Key		The Form Recognizer Subscription Key obtained from BP Logix.
Attachments Group Name		An optional Group name to assign to attachments returned by the REST call.
Reference Type(s)	Process References Form References	The type of attachment to include in the REST call for multipart web requests. Additional reference types may be added by clicking the Add Row button; however, if you use a System Variable to specify the attachment in the Body, you should not use the Add Row button to add additional attachments.
Model Type	All Text Printed Text Written Text	The text model of text you desire to return from the Form Recognizer. You can choose to have the OCR interpret all text, just printed text, or only handwritten text.
Sort Order	Lowest Score Highest Score	The sort order, by recognition score, into which the results should be sorted.
ADVANCED TAB
Default XPath namespace	Global	The default namespace is generally correct.

Result Tab Options

Map results to Form Fields

When this option is selected, the following properties can be configured:

Form Field: The Form field into which to place data from a REST field.

XPath Expression: The XPath expression that specifies the location of a REST field in the XML DOM.

Value Dropdown: The data to place in the field. By default, this is the REST field value, but you can choose to use the Inner or Outer XML from the REST return XML.

Additional Form fields can be added by clicking the Add Mapping button to add a new field.

Place all data from REST call into a single field

When this option is selected, the following properties can be configured:

Form Field: The Form field into which the entire REST response will be placed.

Dump Data from REST call into an attachment

When this option is selected, the following properties can be configured:

Attach Objects to: This property enables you to create either a Form or a Process Attachment from the REST response.

Name: The Name of the attachment file.

Group Name: The desired attachment Group name for the attachment file.

Dump Result Field from REST call into an Attachment

Attach Objects to: This property enables you to create either a Form or a Process Attachment from the REST response.

Results Field (XPATH Expression): The XPATH to the results field. This value can be placed in the Inner or Outer XML, or as a Value by selecting the appropriate value from the dropdown control associated with this property.

Name: The Name of the attachment file.

Group Name: The desired attachment Group name for the attachment file.

Additional Notes:

If URL parameters are being used in the REST call to pass in form field data, the system variables need to use the '&' encode type. e.g., {&FORM:formfield}.

If you request the results to be returned in JSON format AND have mapped to individual form fields, an XPATH expression is still required when defining the mapping between the results and form field (Typically JSONPath expressions are used with JSON). Further, depending on the JSON string, a double slash may be required in the expression when specifying the JSON identifier, because the JSON string might have translated into an empty root XML node, which would require the double slash. So, if a JSON query with a single slash doesn’t work when you think it should, try prefixing the query with a double slash ("//").”
